Technical data
Performance data
Impact rate at rated speed: 1,500 – 2,980 bpm
Rated speed: 165 – 330 rpm
Additional data
Rated input power: 1150 W
Impact energy: 8.8 J
Tool holder: SDS max
Voltage, electrical: 230 V
Weight: 6.8 kg
Drilling range
Drilling dia. concrete, hammer drill bits: 12 – 40 mm
Opt. appl. range concrete, hammer drill bits: 18 – 32 mm
Drilling dia. concrete, breakthrough drill bits: 45 – 55 mm
Drilling diameter in concrete with core cutters: 40 – 90 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah: 13.5 m/s²
Uncertainty K: 1.5 m/s²
Total vibration values (Chiselling in concrete)
Vibration emission value ah: 10.5 m/s²
Uncertainty K: 1.5 m/s²
Hammer drilling in concrete
Vibration emission value ah: 13.5 m/s²
Uncertainty K: 1.5 m/s²
Chiselling in concrete
Vibration emission value ah: 10.5 m/s²
Uncertainty K: 1.5 m/s²

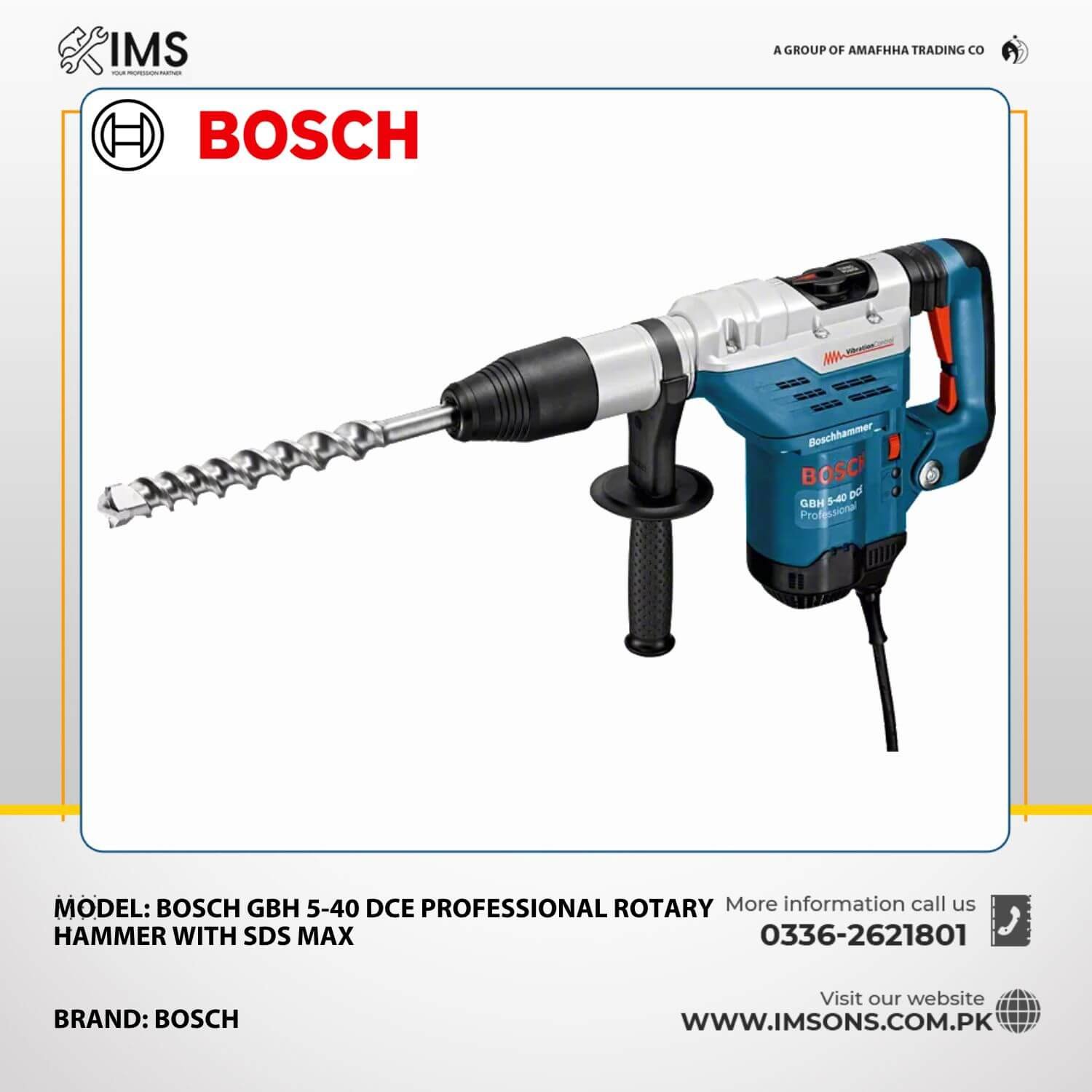

GBH 5-40 DCE Professional: Further information
Product Highlights
The GBH 5-40 DCE Professional is uniquely designed within Bosch’s SDS max corded rotary hammer category for comfortable handling and reduced user fatigue in extensive applications. Its Vibration Control and lightweight design enable effortless and continuous work in time-intensive tasks. The rotary hammer is also built for durability, featuring robust metal components and an optimised lubrication system. Its strong motor enables the delivery of 8.8 J of impact energy for a fast drilling progress and high material removal rate.
