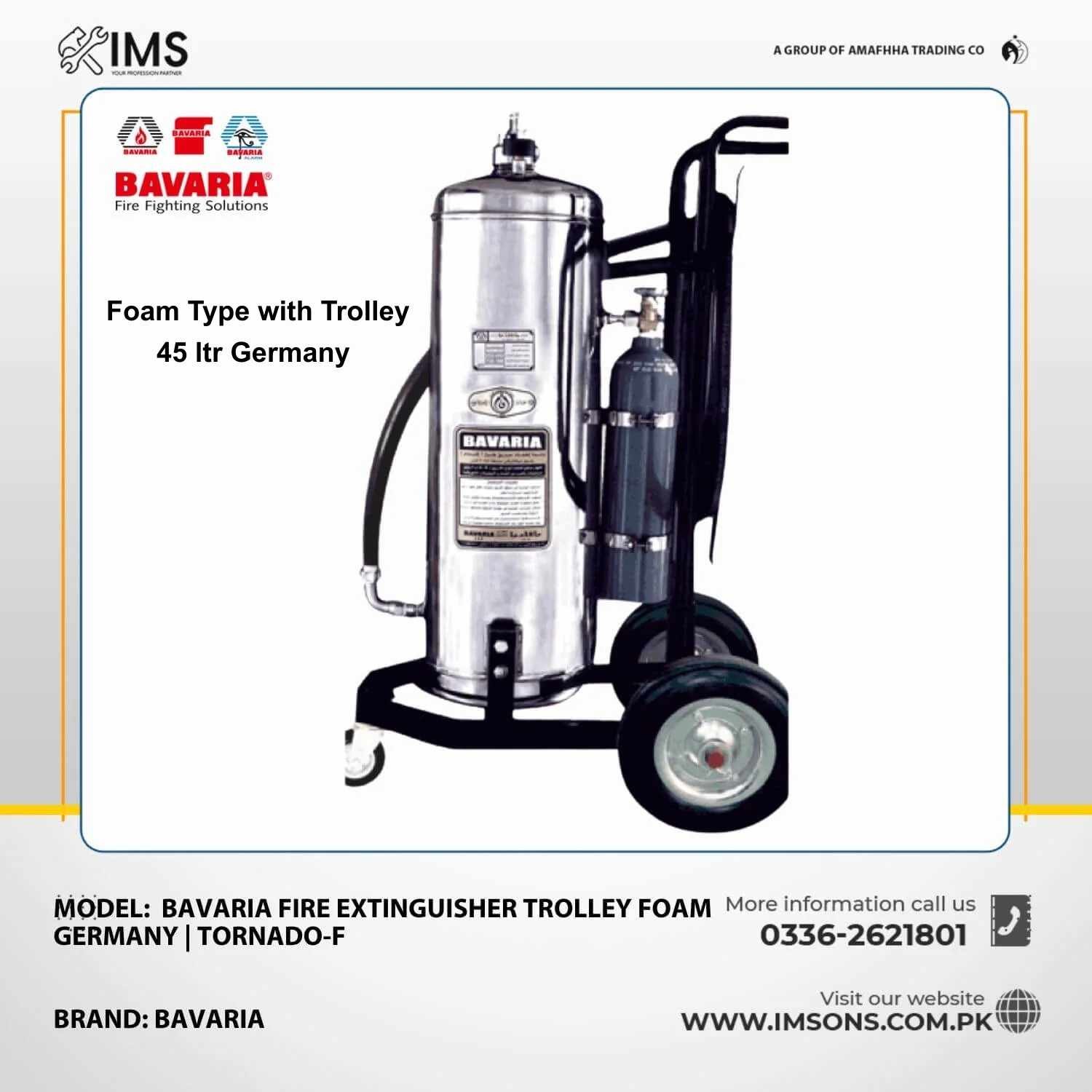

Technical Specifications

• Brand: Bavaria

• Model: TORNADO-F

• Type: Foam Fire Extinguisher (External Pressure Cylinder)

• Extinguishing Agent: AFFF 3% pre-mixed synthetic foam (IA/IA rating)

• Capacities Available:

  • 45 L (standard)

  • 90 L (high-capacity)

• Fire Classes: A (ordinary combustibles) & B (flammable liquids)

• Operating Temperature Range: +5 °C to +60 °C (with additive)

• Testing Pressure: 35 bar

• Bursting Pressure: Over 70 bar

• Propellant: Nitrogen (N₂) external cylinder

• High-Pressure Hose:

  • 45 L: 5 m reinforced rubber hose

  • 90 L: 10 m reinforced rubber hose

• Valve & Gauge: Chrome-plated closure with mechanical over-pressure safety valve and pressure gauge

• Chassis: Stainless steel shell on carriage with two rear rollers and a front directional roller with chemical-resistant tyres

• Approx. Gross Weight: ~123 kg (45 L) / ~237 kg (90 L)

• Standards: Manufactured according to DIN/EN 1866

• Warranty: Typically 2 years against material and production defects

Product Details:

• Supreme extinguishing efficiency.
• One man-operated for easy and efficient use Allows repeated operation and intermittence at will.
• Equipped with chrome plated brass alloy closure equipped with a mechanical over-pressure safety valve.
• Equipped with pressure release valve and pressure gauge.
• Propelled with external nitrogen cylinder Equipped with high pressure reinforced rubber hose.
• Equipped with a heat and an electricity-isolated operating pistol Supported on a carriage with two rear rollers and a front directional roller for easier manoeuvring, with chemical-resistant tyres.

Directions for Use

1. Position the extinguisher near the fire while maintaining a safe distance.

2. Turn the pressure cylinder valve to arm the extinguisher.

3. Hold the insulated operating pistol and aim at the base of the fire.

4. Squeeze the lever; start foam discharge and sweep side-to-side for comprehensive coverage.

Key Benefits

• High Foam Efficiency: Pre-mixed AFFF foam provides superior suppression for Class A and B fires.

• One-Man Operation: Designed for easy control and repeated function by a single operator.

• Long Reach Hose: Extended hose length (5–10 m) allows safe operation from a distance.

• Robust Mobility: Strong carriage wheels ensure easy movement across facilities.

• Certified Quality: Manufactured under stringent DIN/EN standards with TÜV approval.
