Extra Detection. Ultra Protection.

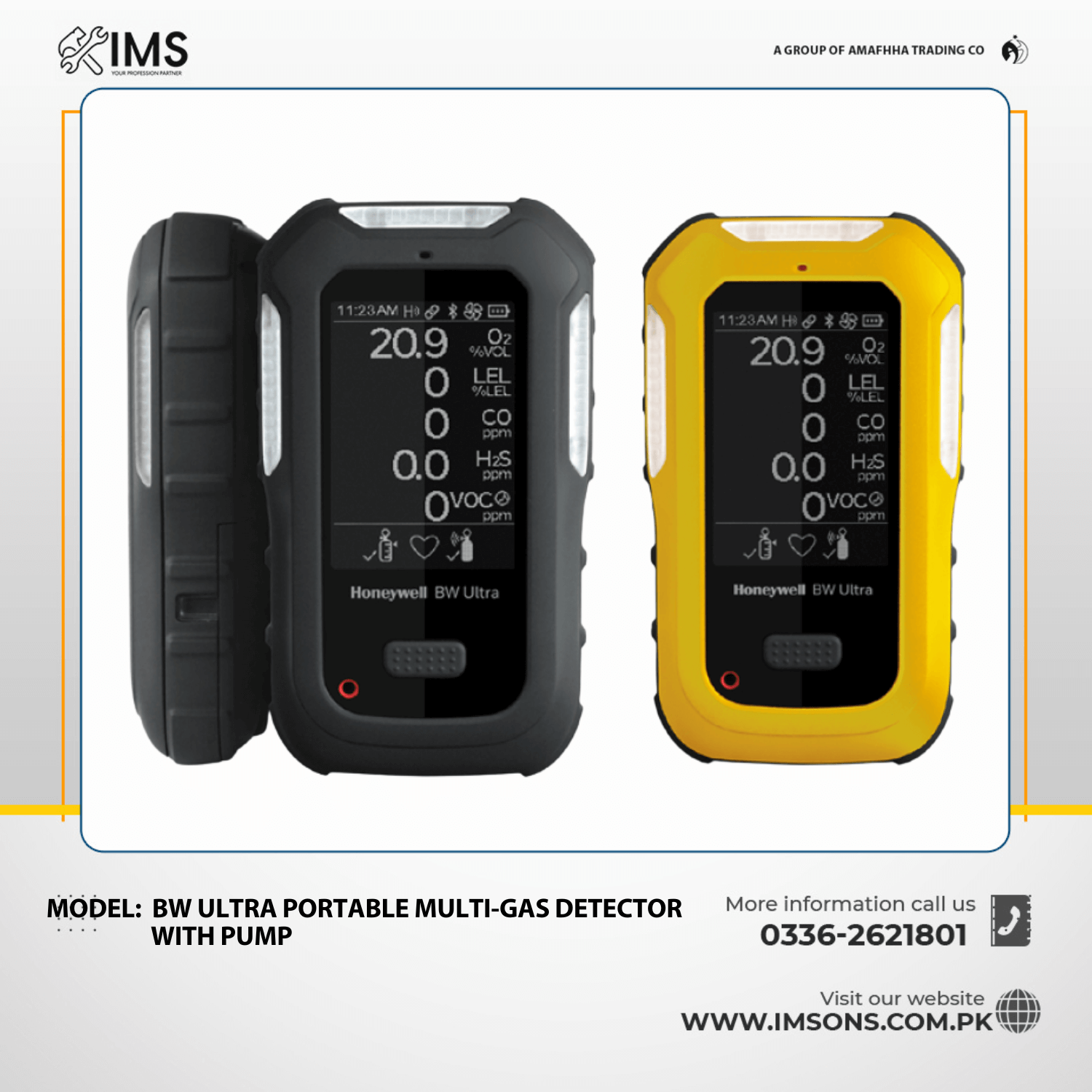

At Honeywell, we always put your safety where it should be first. With Honeywell BW™ Ultra, our new portable five-gas detector, you will be able to do the same for your workers. Designed specifically for sampling and monitoring confined spaces, before and after entry, Honeywell BW™ Ultra has enhanced sensor technology, visibility on gas readings, comfort, and connectivity. This makes it the most reliable and user-friendly way to prevent a safety incident.
Extra Gas Detection. Extraordinary.
The Honeywell BW™ Ultra complies with all safety regulations in place by detecting your required gases. Furthermore, it goes the extra mile by offering you the option to choose a fifth sensor from a list of gases for added protection at work.
The Honeywell BW™ Ultra is the first gas detector on the market to feature the 1?Series sensor, with fast response, reliable performance and long life, even in extreme working conditions. That means high accuracy and lower costs.
Features & Benefits
Ultra Easy
- Tamper-proof operation with one button operation
- Intuitive LCD icons for quick decision making
- Easy service and maintenance
Ultra Visibility
- Intuitive large dot matrix display giving clear readings
- Smart Gas layout for clear sensor reading
- Hole Watch Mode for quick decision making
- IntelliFlash™ and also Reverse IntelliFlash™ for clear compliance
Ultra Rugged
- Honeycomb-designed housing for extra ruggedness
- Protection designed in the right place
- Scratch-resistant display protector
Ultra Connected
- Honeywell Connected Worker compatible
- Honeywell TouchConnect™ Technology for activating a feature
- Honeywell SafetySuite for unit configuration and reporting
Ultra Comfortable
- Ergonomically designed for easy use
- Light yet rugged design
- Fits in the hand for easy sampling
Ultra Quick
- Quick responding sensor technology
- Quick decision making because large display
- Quick bump & calibration with IntelliDoX system
Technical Specifications:
| SIZE | 5.8 x 3.3 x 1.6 in. / 14.8 x 8.5 x 4.0 cm |
| WEIGHT | 14.5 oz. / 411 g (with clip) |
| OPERATING TEMPERATURE | -4 to +131° F / -20 to +50° C |
| HUMIDITY | 5 – 95% RH (non-condensing) continuous |
| INGRESS PROTECTION | IP66/68 |
| ALARMS AND TYPE | Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit) |
| SELF-TEST | Activated detectors automatically perform one internal diagnostic test every 24 hours (sensors, battery, and circuitry). |
| TYPICAL BATTERY LIFE | 18 hours (14 hours with PID or IR sensor) @ -4° F / -20° C |
| PUMP DRAW | Sample from up to 75 ft. / 22.9 m |
| CONNECTED WORKER | • Bluetooth™ Low Energy (BLE) – Ability to connect to Honeywell’s Safety Communicator App • Honeywell TouchConnect™ – Easy ability to enter Bump or Calibration mode or change Set-Points |
| EVENT LOGGING | 30 alarm events and 10 bump events |
| DATA LOGGING | 45 days based on 8 hour shifts every 15 seconds logging |
| USER OPTIONS | • Adjust STEL period (5-15 minutes in 1 minute intervals) • Calibration span levels • Calibration interval • Bump test interval • Select combustible gases measurement: 0-100% LEL (Lower Explosive Limit) or Methane gas 0-5.0% v/v • LEL and PID correction factors • Calibration due date (1 to 365 days, or set to zero for off) • Individual sensor enable/disable • Latching alarms • Stealth mode • Languages: English, French, German, Portuguese, Spanish, Simplified Chinese and Russian |
Sensor Specifications:
| GASES | STANDARD MEASURING RANGE | RESOLUTION |
| OXYGEN (O2) | 0-25% vol. | 0.1% vol. |
| COMBUSTIBLE GASES (LEL) | 0-100% LEL | 1% LEL |
| COMBUSTIBLE GASES (IR)* | 0-5.00% vol. | 0.01% vol. |
| HYDROGEN SULFIDE (H2S) | 0-100 ppm | 1 ppm / 0.1 ppm |
| CARBON MONOXIDE (CO) | 0-2,000 ppm | 1 ppm |
| CARBON MONOXIDE (LOW H2) (CO-H) | 0-1,000 ppm | 1 ppm |
| SULFUR DIOXIDE (SO2) | 0-100 ppm | 0.1 ppm |
| HYDROGEN (H2) | 0-2,000 ppm | 5 ppm |
| CARBON DIOXIDE (CO2) | 0-50,000 ppm | 100 ppm |
| AMMONIA (NH3) | 0-100 ppm | 1 ppm |
| VOLATILE ORGANIC COMPOUNDS (VOC) ** | 0-1,000 ppm | 1 ppm |
| CHLORINE (CL2) | 0-20 ppm | 0.1 ppm |
| NITROGEN DIOXIDE (NO2) | 0-50 ppm | 0.1 ppm |
| HYDROGEN CYANIDE (HCN) | 0-100 ppm | 0.1 ppm |
| NITROGEN MONOXIDE (NO) | 0-200 ppm | 1 ppm |
