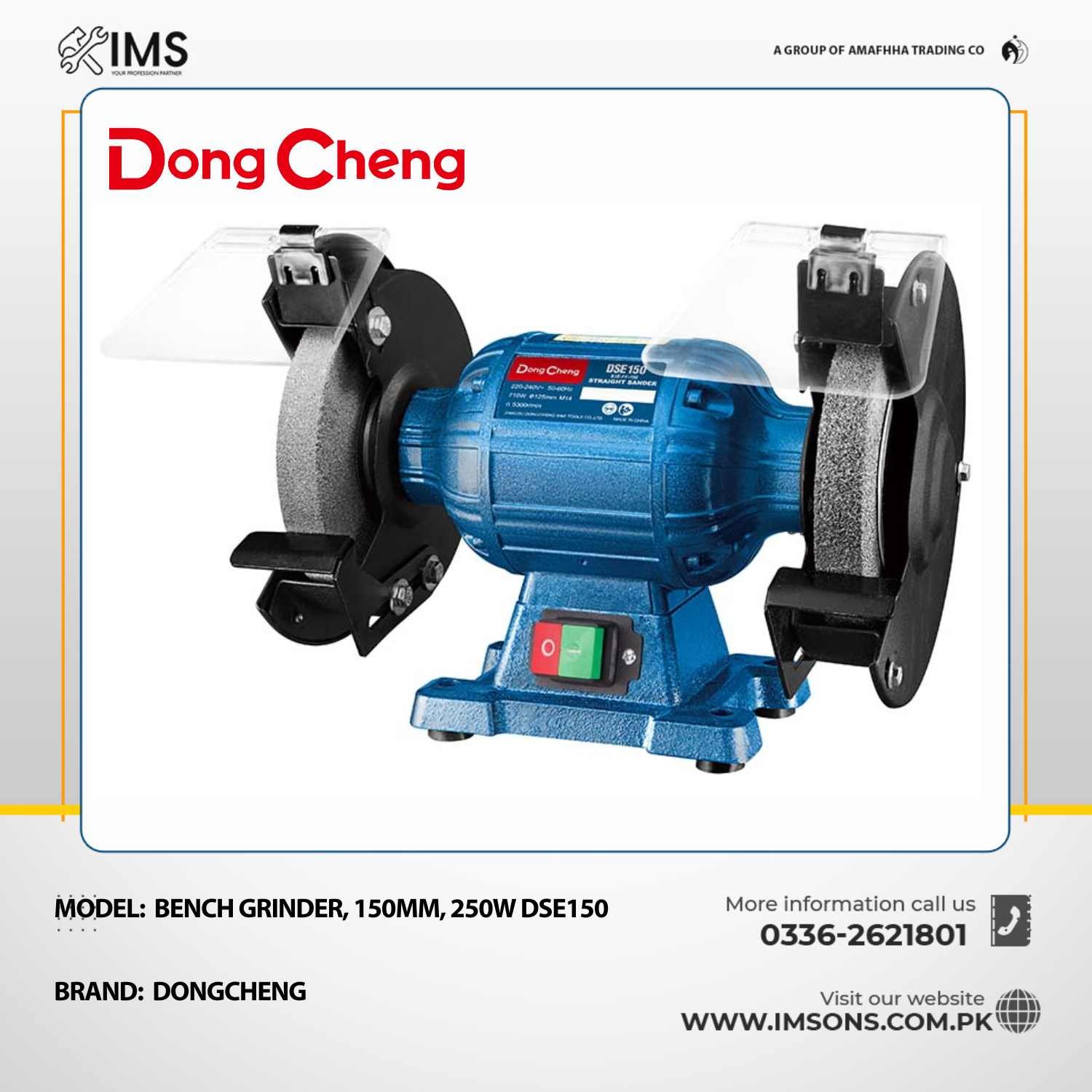

Dongcheng Bench Grinder DSE150 – 150 mm (6″) – 250W

20,400₨

Brand:

  • DongCheng Power Tools – Professional Grade for Every Project
  • Brand: Dongcheng
  • Model No.: DSE150
  • Product Type: Electric Bench Grinder
  • Rated Power: 250W
  • No-Load Speed: 2,840 RPM
  • Grinding Wheel Diameter: 150mm / 6″
  • Grinding Wheel Dimensions: 150 × 20 × 32mm
  • Wheel Thickness: 20mm
  • Wheel Bore: 32mm
  • Grinding Wheels: Double — Coarse & Fine
  • Net Weight: 7.6kg
  • Eye Shield Assemblies: 2 Pieces
  • Sharpening Holders: 2 Pieces
  • Power Source: Corded Electric
  • Packaging: Colour Box
  • Applications: Tool Sharpening, Metal Grinding, Edge Shaping, Deburring & Workshop Maintenance

Pickup available at Shop location

Usually ready in 24 hours

View store information

Description:

The Dongcheng DSE150 250W Bench Grinder is a compact, double-wheel electric grinding machine designed for tool sharpening, metal grinding, edge finishing, deburring and general workshop maintenance applications.

Powered by a 250W electric motor, the DSE150 delivers a 2,840 RPM no-load speed, providing rotational performance for compatible grinding wheels used in workshop sharpening and metal finishing tasks.

One of its main features is the double grinding wheel configuration, incorporating both coarse and fine grinding wheels for different stages of the grinding process.

The coarse grinding wheel is suitable for initial material removal, edge shaping and general grinding, while the fine grinding wheel is intended for lighter finishing and sharpening applications.

The grinder accommodates wheels measuring 150 × 20 × 32mm, representing a 150mm (6-inch) outer diameter, 20mm wheel thickness and 32mm mounting hole.

The dual-wheel arrangement allows operators to perform different grinding and sharpening tasks on one stationary machine without regularly changing between coarse and fine abrasive wheels.

For operator protection, Dongcheng lists two eye shield assemblies, designed to provide a physical barrier against some particles generated during grinding. Proper protective eyewear must still be worn.

The manufacturer also lists two sharpening holders, which provide support for suitable tool sharpening operations when correctly installed and adjusted.

With a 7.6kg net weight, the DSE150 offers a substantial bench grinding configuration for workshop and maintenance applications.

The Dongcheng DSE150 250W Bench Grinder is suitable for engineering workshops, machinery maintenance facilities, metal fabrication workshops, repair shops and general tool sharpening applications.


Technical Specifications:

Specification Details
Brand Dongcheng
Model No. DSE150
Product Type Electric Bench Grinder
Tool Type Stationary Grinding Machine
Rated Power Input 250W
No-Load Speed 2,840 RPM
Grinding Wheel Configuration Double Wheel
Wheel Types Coarse & Fine
Wheel Dimensions 150 × 20 × 32mm
Maximum Wheel Diameter Ø150mm
Wheel Size 6 Inches
Wheel Thickness 20mm
Wheel Mounting Hole Ø32mm
Net Weight 7.6kg
Grinding Applications Sharpening, Grinding & Deburring
Power Source Corded Electric
Eye Shield Assemblies 2 Pieces
Sharpening Holders 2 Pieces
Packaging Colour Box

Motor & Performance Specifications:

Specification Details
Rated Power 250W
No-Load Speed 2,840/min
Maximum Wheel Diameter 150mm / 6″
Grinding Wheel Thickness 20mm
Wheel Bore Diameter 32mm
Number of Grinding Wheels 2
Grinding Wheel Arrangement Coarse & Fine
Machine Configuration Bench Grinder
Net Weight 7.6kg

Manufacturer Specification Note:

The official Dongcheng product page confirms 250W rated power, 2,840 RPM no-load speed, 150 × 20 × 32mm grinding wheel dimensions and 7.6kg net weight.

Dongcheng identifies the double grinding wheel configuration with coarse and fine grinding wheels as the main product feature.

The manufacturer also lists two eye shield assemblies and two sharpening holders with colour box packaging.

The exact abrasive wheel grit numbers, wheel composition, operating voltage, electrical frequency, noise levels and vibration values are not specified on the referenced product page.

Only replacement grinding wheels compatible with the manufacturer’s specified dimensions, mounting system and operating speed should be used.


Included Items:

Manufacturer-Listed Features, Accessories & Packaging:

  • 1 × Dongcheng DSE150 250W Bench Grinder
  • Coarse Grinding Wheel
  • Fine Grinding Wheel
  • 2 × Eye Shield Assemblies
  • 2 × Sharpening Holders
  • Colour Box Packaging

Note: The dual coarse-and-fine wheel configuration is confirmed by Dongcheng. The eye shields and sharpening holders are manufacturer-listed accessories. Exact wheel grit grades, mounting hardware and other package contents should be checked against the actual supplied unit before dispatch.


Recommended Applications:

  • Workshop tool sharpening
  • Metal edge grinding
  • Small metal component grinding
  • Metal surface deburring
  • Cutting tool edge preparation
  • Chisel sharpening with suitable wheels
  • Tool bit sharpening
  • Metal edge shaping
  • Steel component finishing
  • Small fabrication workshop applications
  • Engineering workshop maintenance
  • Machinery maintenance
  • Repair and maintenance workshops
  • Rust removal with compatible wheels
  • General bench grinding
  • Coarse material removal
  • Fine surface finishing
  • Workshop sharpening operations

Application Note: Use only compatible grinding wheels with the correct 150mm diameter, 20mm thickness and 32mm bore. Wheels must be approved for the machine’s operating speed of 2,840 RPM. Wear suitable eye and face protection, use the supplied shields correctly and follow all manufacturer safety instructions. Do not grind on the side of a wheel unless the wheel is specifically approved for that operation.


Key Features & Benefits:

250W Electric Motor:
Equipped with a 250W electric motor designed for general workshop grinding, sharpening and maintenance applications.

2,840 RPM Grinding Speed:
Delivers a 2,840 RPM no-load speed, providing rotational performance for compatible bench grinding wheels.

150mm / 6-Inch Wheel Capacity:
Supports grinding wheels with a 150mm outer diameter, suitable for compact workshop grinding and sharpening tasks.

Double Grinding Wheel Configuration:
Features a dual-wheel arrangement designed for coarse and fine grinding operations.

Coarse Grinding Wheel:
The coarse wheel is useful for initial material removal, edge shaping and general-purpose grinding of compatible materials.

Fine Grinding Wheel:
The fine wheel is intended for lighter grinding, finishing and selected sharpening applications.

Two Grinding Functions in One Machine:
The coarse-and-fine wheel arrangement allows operators to use different abrasive finishes without frequently replacing wheels.

150 × 20 × 32mm Grinding Wheel Dimensions:
Uses wheels specified at 150mm diameter, 20mm thickness and 32mm mounting hole, allowing correctly matched wheel selection.

Eye Shield Assemblies:
Dongcheng lists two eye shield assemblies, providing an additional protective barrier when installed and positioned correctly.

Sharpening Holders:
Includes two manufacturer-listed sharpening holders intended to support suitable sharpening operations.

Bench Grinder Configuration:
Designed as a stationary grinding machine rather than a handheld grinder, making it suitable for workshop bench applications.

Tool Sharpening Capability:
Suitable for sharpening appropriately supported metal cutting tools when the correct wheel type and technique are used.

Metal Edge Deburring:
Can be used to remove burrs and surface irregularities from suitable metal components.

Metal Edge Shaping:
The coarse grinding wheel supports controlled shaping of accessible metal edges and small components.

Fine Finishing Applications:
The fine grinding wheel supports lighter grinding and finishing work after coarse material removal.

7.6kg Net Weight:
Features a 7.6kg net weight, providing a substantial stationary tool configuration.

Corded Electric Operation:
Provides mains-powered operation without relying on rechargeable batteries.

Workshop Maintenance Applications:
Useful for general repair, sharpening and selected metalworking operations in engineering and maintenance facilities.

Dual Eye Protection Assemblies:
Both grinding wheel positions are supported by manufacturer-listed eye shield assemblies. These shields do not replace safety glasses.

Professional & General Workshop Use:
Suitable for metalworking workshops, tool maintenance areas, repair facilities and compatible general-purpose grinding applications.

Reviews

There are no reviews yet.

Be the first to review “Dongcheng Bench Grinder DSE150 – 150 mm (6″) – 250W”

Your email address will not be published. Required fields are marked *

FAQs

Q1: What is the motor power and speed of the Dongcheng DSE150 Bench Grinder?

The Dongcheng DSE150 features a 250W electric motor and delivers a 2,840 RPM no-load speed.

Q2: What grinding wheel size does the Dongcheng DSE150 support?

The grinder uses 150 × 20 × 32mm grinding wheels, corresponding to a 150mm (6-inch) outer diameter, 20mm thickness and 32mm mounting hole.

Q3: Does the Dongcheng DSE150 have two grinding wheels?

Yes. The DSE150 features a double grinding wheel configuration, consisting of one coarse and one fine grinding wheel for different grinding and finishing operations.

Q4: Is the Dongcheng DSE150 suitable for tool sharpening?

Yes. The DSE150 is suitable for sharpening compatible metal tools, subject to the correct abrasive wheel, operating technique and manufacturer safety instructions. Dongcheng also lists two sharpening holders.

Q5: What accessories are included with the Dongcheng DSE150?

Dongcheng lists two eye shield assemblies and two sharpening holders, together with colour box packaging. The machine features coarse and fine grinding wheels. Confirm exact wheel specifications and supplied mounting hardware before dispatch.
