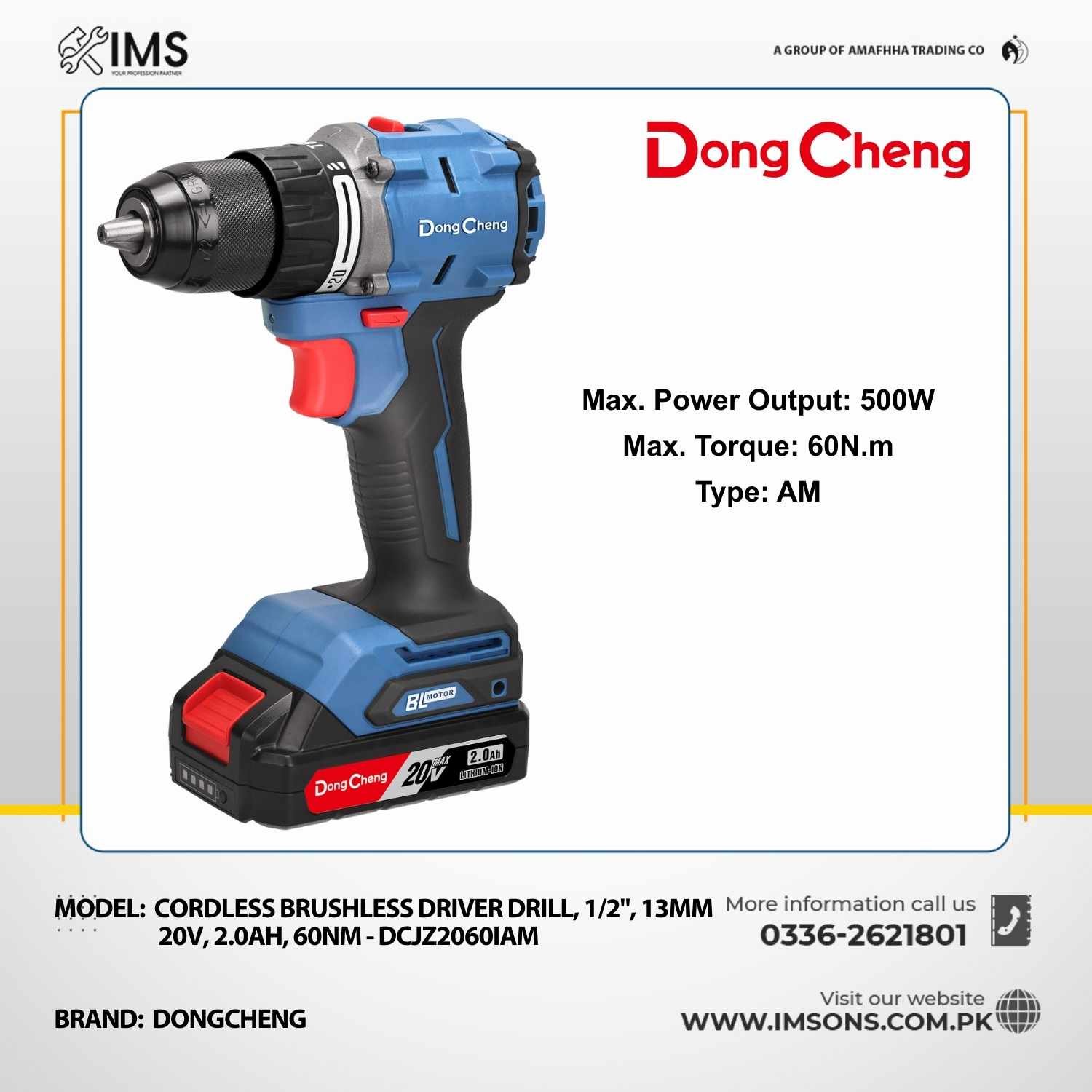

The DCJZ2060i (TYPE AM) is a high-performance 20V MAX cordless brushless hammer drill engineered for heavy-duty drilling and fastening applications. Delivering 500W power output, 60Nm maximum torque, and 0–34,500 BPM impact rate, this tool is ideal for professionals and serious DIY users.

With its 13mm metal ratchet chuck, 20+2 torque settings, and dual-speed gearbox, it ensures precise control and superior drilling capability across wood, steel, and masonry.

Technical Specifications

• Battery: 20V MAX / 2.0Ah × 2 Lithium-Ion

• Max Power Output: 500W

• Max Torque: 60Nm

• Torque Settings: 20+2 (Drill & Hammer Modes)

• No-Load Speed:

  • 1st Gear: 0–600 RPM

  • 2nd Gear: 0–2300 RPM

• Rated Impact Frequency: 0–34,500 BPM

• Max Drilling Diameter:

  • Steel: Φ13mm

  • Brick Wall: Φ13mm

  • Wood: Φ38mm

• Chuck Capacity: 13mm Metal Ratchet Chuck

• Body Length: 152mm Compact Design

• Net Weight: Approx. 1.5kg (tool with battery varies by configuration)

• Motor Type: Brushless

Applications

Perfect for:

• Concrete and brick wall drilling

• Steel fabrication work

• Woodworking projects

• Furniture assembly

• Electrical and plumbing installations

• Cabinet installation

• Construction site work

• Renovation and home improvement

• Professional contractor use

Its hammer mode makes it highly effective for masonry drilling.

Key Features & Benefits

✅ High-Efficiency Brushless Motor

• Longer lifespan

• Increased runtime

• Reduced maintenance

• More consistent power delivery

✅ 60Nm Powerful Torque

• Strong fastening capability

• Handles demanding drilling tasks

• Ideal for structural and heavy-duty applications

✅ 20+2 Torque Settings

• Precise screw control

• Prevents over-tightening

• Suitable for delicate and heavy-duty tasks

✅ 2-Speed Gearbox

• Low speed (0–600 RPM): High torque for screw driving

• High speed (0–2300 RPM): Fast drilling

✅ 13mm Metal Ratchet Chuck

• Strong bit grip

• Enhanced durability

• Reduced slippage

✅ Compact 152mm Body

• Perfect for tight spaces

• Better handling & balance

• Reduced user fatigue

Directions for Use (Safety & Efficiency)

1. Fully charge both 2.0Ah batteries using the 2A charger.

2. Insert battery securely before operation.

3. Select drill, screw, or hammer mode as required.

4. Adjust torque setting based on material.

5. Choose appropriate gear:

   • 1st gear for precision and high torque

   • 2nd gear for high-speed drilling

6. Always wear:

   • Safety goggles

   • Gloves

   • Dust mask when drilling masonry

7. Do not exceed recommended drilling diameters.

8. Store tool in provided plastic case after use.

Accessories & Package (TYPE AM)

• 2 × 2.0Ah Lithium-Ion Batteries

• 2A Charger

• Driver Bit

• Belt Clip

• Plastic Carrying Case
