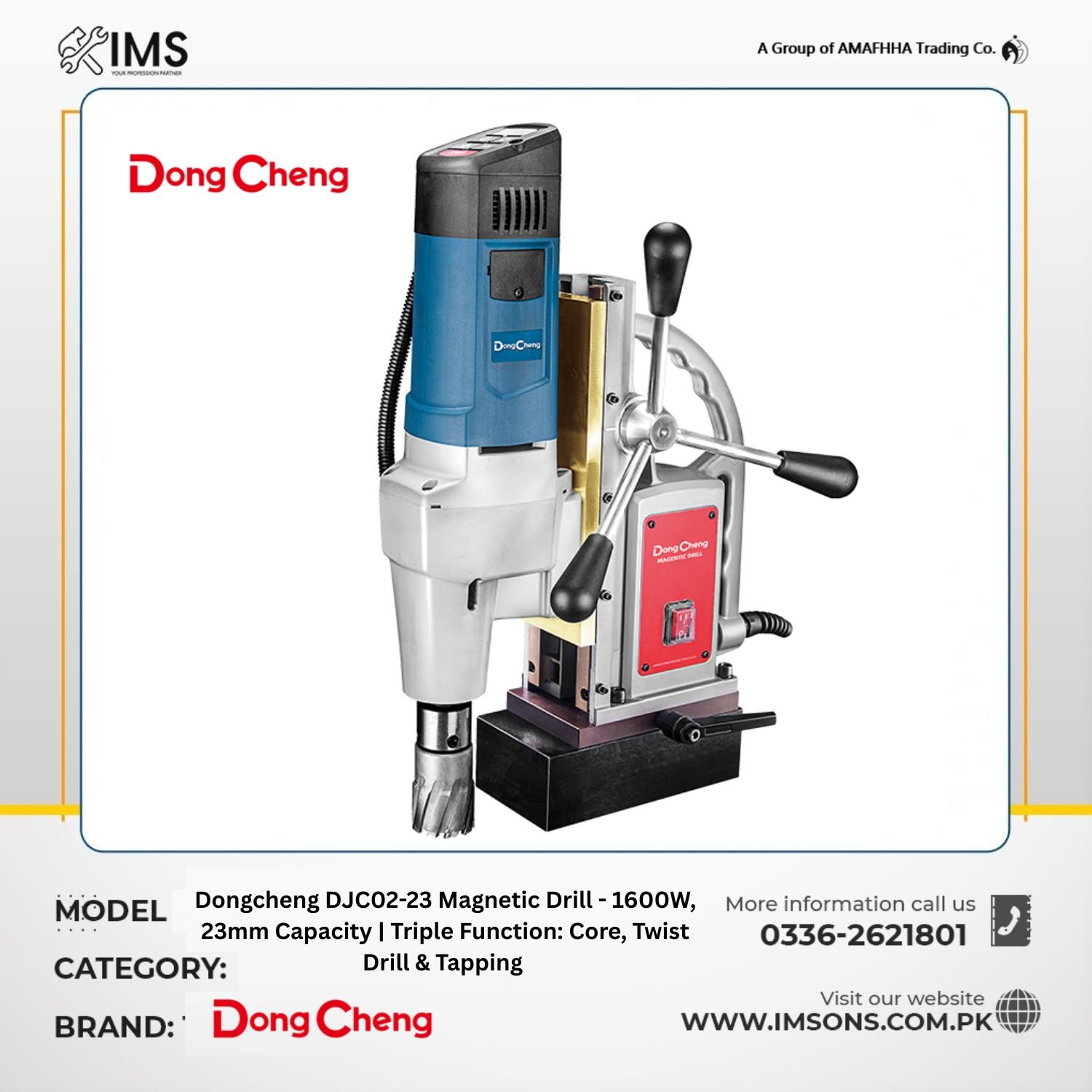

Technical Specifications:

• Brand: Dongcheng

• Model: DJC02-23

• Rated Power Input: 1600W

• Max. Drilling Capacity: Twist Drill Bit: Φ23mm | Core Drill Bit: Φ50mm

• Max. Tapping Capacity: M20 (sold separately)

• Magnetism Strength: 15,000N

• No-load Speed: 130–260 / 260–520 rpm (2-speed mechanical control)

• Max. Stroke: 220mm

• Connector Type: MT3 Shank

• Net Weight: 24.0kg

Features:

1. Triple Function – Twist Drilling, Core Drilling, and Tapping capability.

2. Soft Start – smooth motor startup for safety and precision.

3. 2-Speed Mechanical Control – optimal torque & speed for various materials.

4. Electronic Constant Speed Control – maintains consistent drilling speed under load.

5. Overload Protection & Safety Clutch – prevents damage to the motor and operator injury.

Accessories & Package:

Joint Assembly for MT3 Core, Wedge Iron, Safety Belt, Open-end Wrench, Hex Wrench (2pcs), Chuck Wrench, Drill Chuck, Extension Rod for Morse Taper Bush with Tang, Center Pin, Long Center Pin, Short Center Pin, Morse Reduction Sleeve, Oiler Assembly, Carbon Brush, Plastic Case Packing.

Applications:
Ideal for:

• Heavy industrial fabrication

• Construction & steel structure drilling

• Maintenance workshops requiring twist, core, and tapping versatility

Directions for Use:

1. Secure the machine to a ferrous surface using a magnetic base.

2. Select drilling mode (twist, core, or tapping) and adjust speed accordingly.

3. Engage magnetism before starting the motor.

4. Use appropriate coolant or lubrication during drilling.

Key Benefits:

• Versatile 3-in-1 functionality for different drilling tasks.

• High power output for heavy-duty jobs.

• Enhanced operator safety with overload protection & clutch.
