Technical Specifications

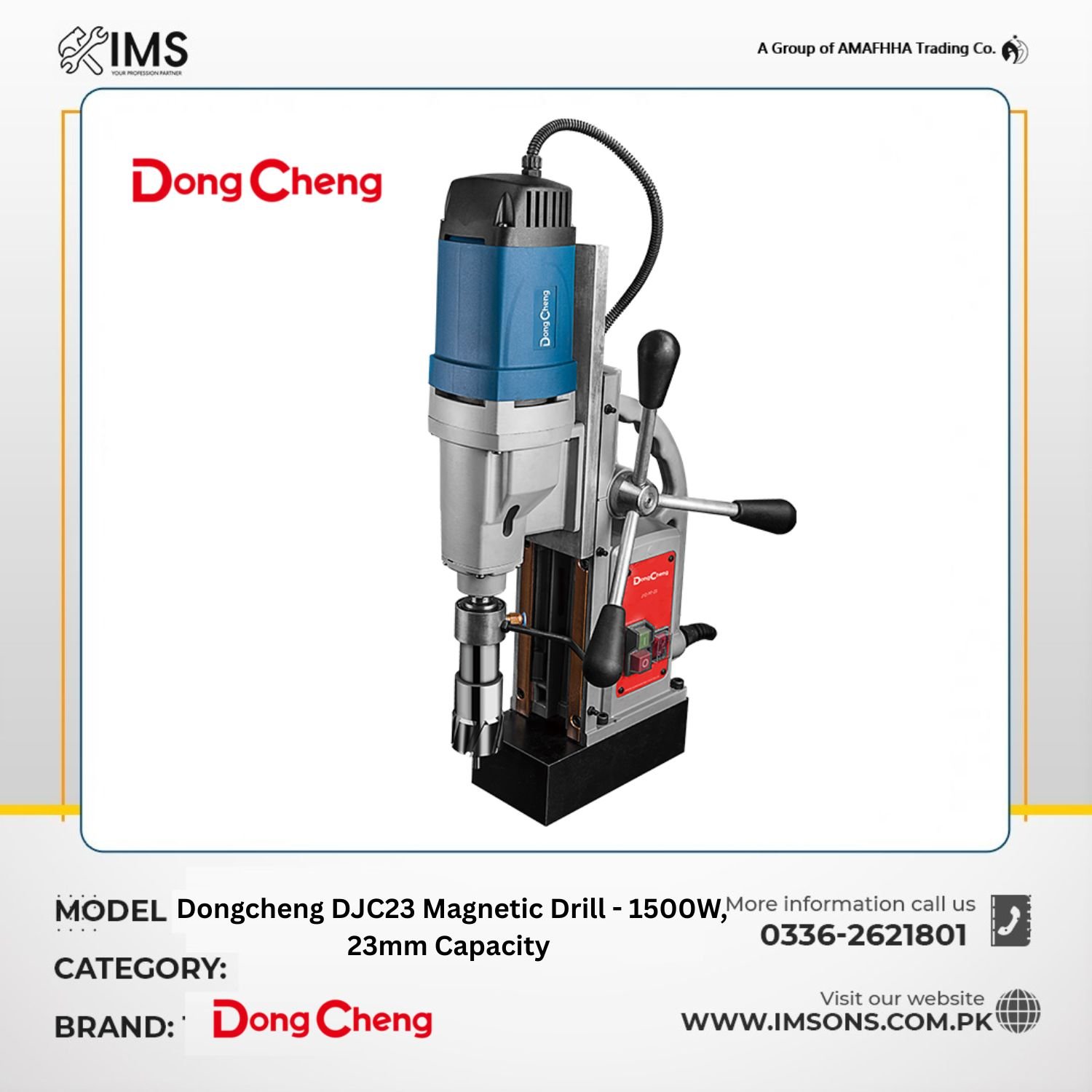

• Model: DJC23
• Rated Power Input: 1500W
• Max. Drilling Capacity:
  • Twist Drill Bit: Φ23mm
  • Core Drill Bit: Φ50mm
• Magnetism: 15000N
• No-load Speed: 390/min (Single Speed)
• Max. Stroke: 220mm
• Connector: MT2 Shank
• Net Weight: 21.0kg
• Voltage: 220-240V ~ 50/60Hz

Features:

1. Dual Function – Twist Drilling & Core Drilling.

2. Fuse Overload Protection – prevents damage from excessive load.

Accessories & Package:

• Core Drill Bit (22mm), Core Drill Bit Joint Assembly, Wedge Iron, Safety Belt, Hex Wrench (2 pcs), Drill Chuck Wrench, Drill Chuck, Extension Rod for Morse Taper Bush with Tang, Fuse, Oiler Assembly, Carbon Brush, Iron Carrying Case.

Applications:
Designed for:

• Industrial fabrication and construction

• Steel structure drilling

• Heavy-duty maintenance work in workshops and on-site

Directions for Use:

1. Attach the drill to a ferrous surface using the magnetic base.

2. Select the correct drill bit and insert it into the MT2 shank connector.

3. Engage the magnet before switching on the motor.

4. Use cutting oil for smoother drilling and longer tool life.

Key Benefits:

• Stable drilling performance with 15,000N magnetism.

• Versatile with both twist and core drilling capabilities.

• Portable with protective iron carrying case.
