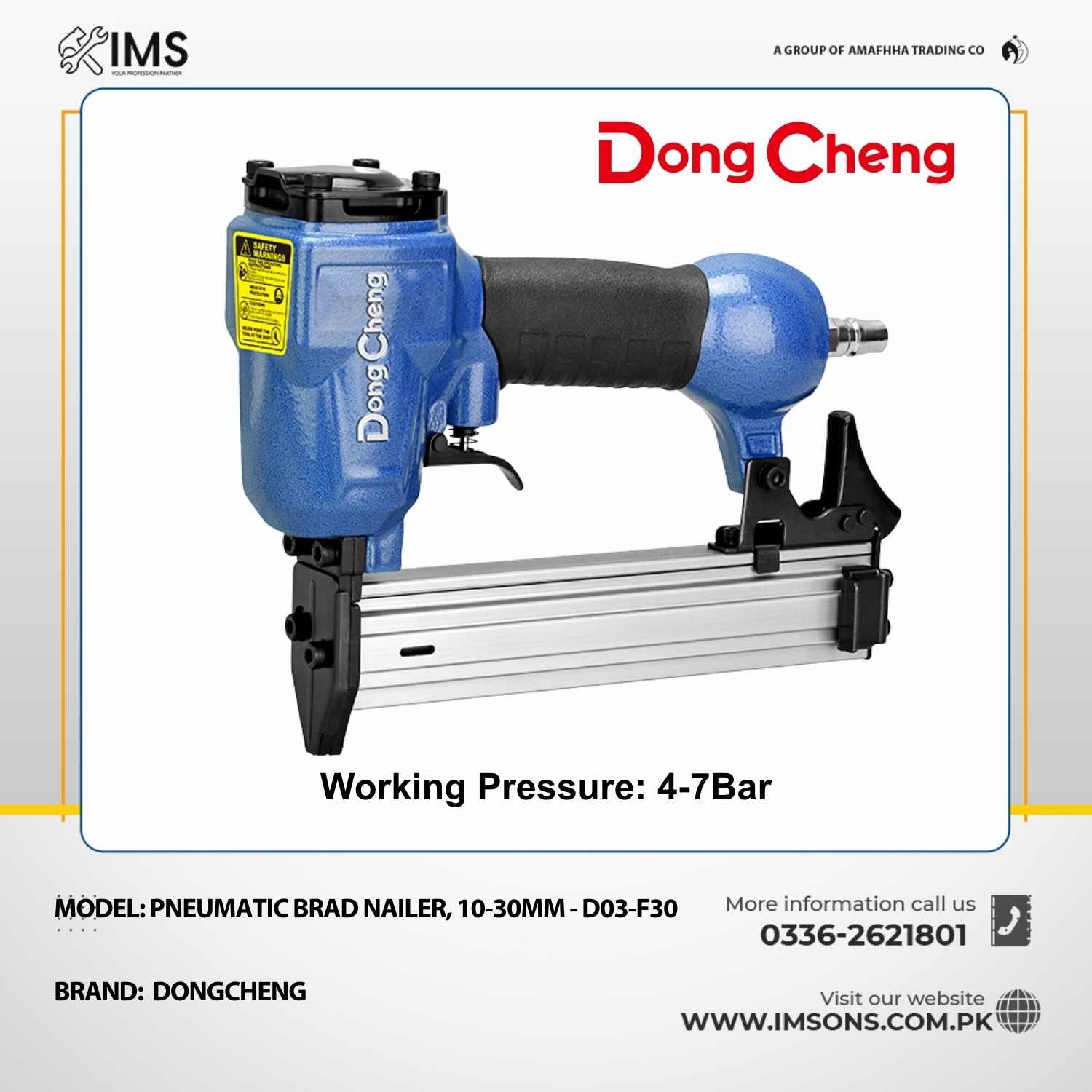

The D03-F30 Pneumatic Brad Nailer is a compact, high-performance air nail gun designed for precision fastening in woodworking and interior finishing applications. Operating at 4–7 bar pressure and supporting up to 30mm brad nails, it delivers fast, consistent, and clean nailing with minimal effort.

Its rubberized anti-slip handle, lightweight aluminum alloy magazine, and touch-switch continuous firing make it ideal for long working hours in workshops, furniture factories, and job sites.

Technical Specifications

• Model: D03-F30

• Working Pressure: 4–7 Bar

• Inner Diameter of Air Pipe: 5 mm

• Magazine Capacity: 100 nails

• Nail Type: Brad Nail

• Nail Size: φ1.25 × 1.05 × 30 mm (Max)

• Net Weight: 1.03 kg

• Operation Type: Pneumatic (Air-Powered)

Applications

Suitable for:

• Furniture assembly

• Cabinet making

• Door & window trim

• Upholstery and panel fixing

• Decorative woodwork

• Interior finishing jobs

Ideal for:

• Carpenters

• Furniture manufacturers

• Woodworking workshops

• Construction finishing crews

• DIY users with air compressors

Directions for Use

1. Connect the nailer to an air compressor using a 5mm air hose.

2. Adjust air pressure between 4–7 bar as required.

3. Load brad nails into the magazine (up to 100 pcs).

4. Press the nose firmly against the workpiece.

5. Pull the trigger or use touch-switch mode for continuous nailing.

6. Disconnect air supply before maintenance or nail reloading.

⚠️ Safety Tip: Always wear eye protection and disconnect air supply when not in use.

Key Benefits

• Lightweight Design: Only 1.03kg for fatigue-free operation

• Rubberized Handle: Non-slip grip with shock absorption

• Durable Aluminum Magazine: Hard-oxidized for long service life

• Touch-Switch Firing: Fast and efficient continuous nailing

• Wear-Resistant Air Inlet: Heat-treated for durability

• Clean & Precise Fastening: Ideal for finish work

Accessories & Package Includes

• Wrench × 2

• Oil Bottle × 1

• Color Box Packing
