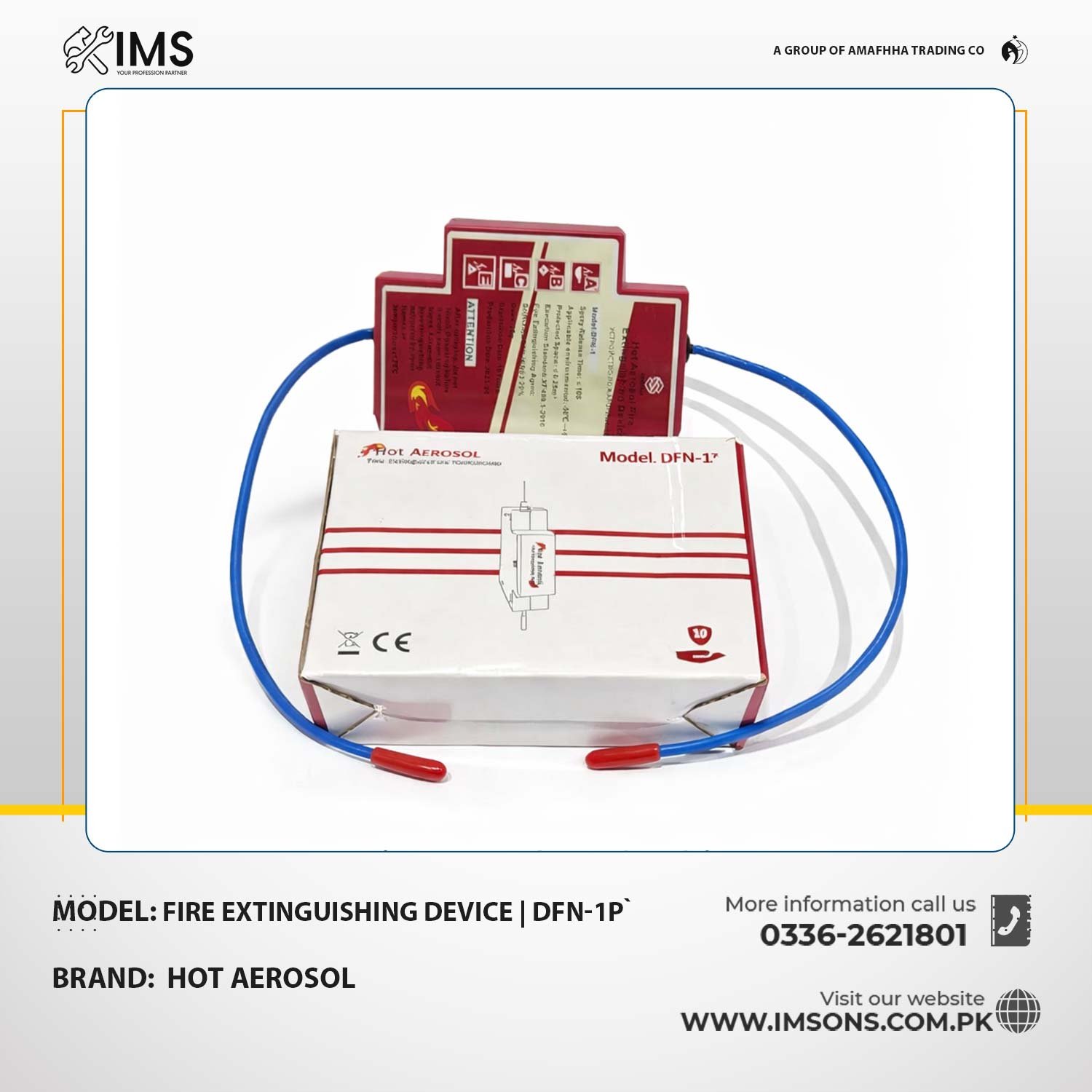

The Hot Aerosol DFN-1P Fire Extinguishing Device is Din Rail Braker is a compact, automatic fire suppression solution specifically designed to protect electrical panels, control cabinets, switchboards, and enclosed electrical spaces. It uses hot aerosol fire suppression technology to rapidly extinguish fires at their early stage—without human intervention.

Upon activation, the DFN-1P releases a fire-suppressing aerosol that interrupts combustion, effectively extinguishing fires without damaging sensitive electrical equipment. Its self-activating design makes it ideal for unattended or high-risk electrical installations.

This compact and maintenance-free device is ideal for electrical panels, UPS systems, control cabinets, and ATMs, offering fast and reliable protection.

Key Features

• Automatic Fire Suppression – Activates without manual operation

• Hot Aerosol Technology – Rapid and effective fire control

• Designed for Electrical Panels – Ideal for enclosed electrical spaces

• Compact & Lightweight Design – Easy installation inside panels

• Clean Agent – No water, no foam, minimal residue

• No Electricity Required – Self-contained activation

• Fast Response Time – Suppresses fire at early stage

• Maintenance-Free Operation – Long service life with minimal upkeep

Technical Specifications

• Model: DFN-1P

• Type: Hot Aerosol Fire Extinguishing Device

• Activation Method: Automatic (thermal / fire-triggered)

• Extinguishing Agent: Hot aerosol compound

• Response Time: ≤ 10 seconds

• Application Area: Electrical panels & enclosed cabinets

• Installation: Inside electrical panels or control boxes

• Operation: Independent (no external power required)

• Residue: Minimal, non-damaging to electronics

(Exact coverage area and activation temperature may vary by configuration)

Fire Classes Covered

• Electrical Fires

• Early-stage Class A & B fires within enclosed spaces

⚠️ Designed specifically for enclosed environments such as electrical panels.

Applications

The Hot Aerosol DFN-1P Fire Extinguishing Device is ideal for:

• Electrical Panels & Switchboards

• Control Cabinets & MCC Panels

• UPS Systems & Power Distribution Units

• Telecom Cabinets & Network Enclosures

• Industrial Control Systems

• Data & Communication Equipment

How It Works (Automatic Operation)

1. Fire Detection: Heat or flame triggers the device

2. Automatic Activation: No manual input required

3. Aerosol Discharge: Fire-suppressing aerosol is released

4. Fire Suppression: Combustion chain is interrupted

5. Fire Extinguished: Prevents fire spread and re-ignition

Key Benefits

✔ Automatic protection for unattended electrical systems
✔ No water damage or corrosion risk
✔ Compact solution for confined spaces
✔ Rapid fire suppression at early stage
✔ Safe for sensitive electronics
✔ Cost-effective alternative to large suppression systems
