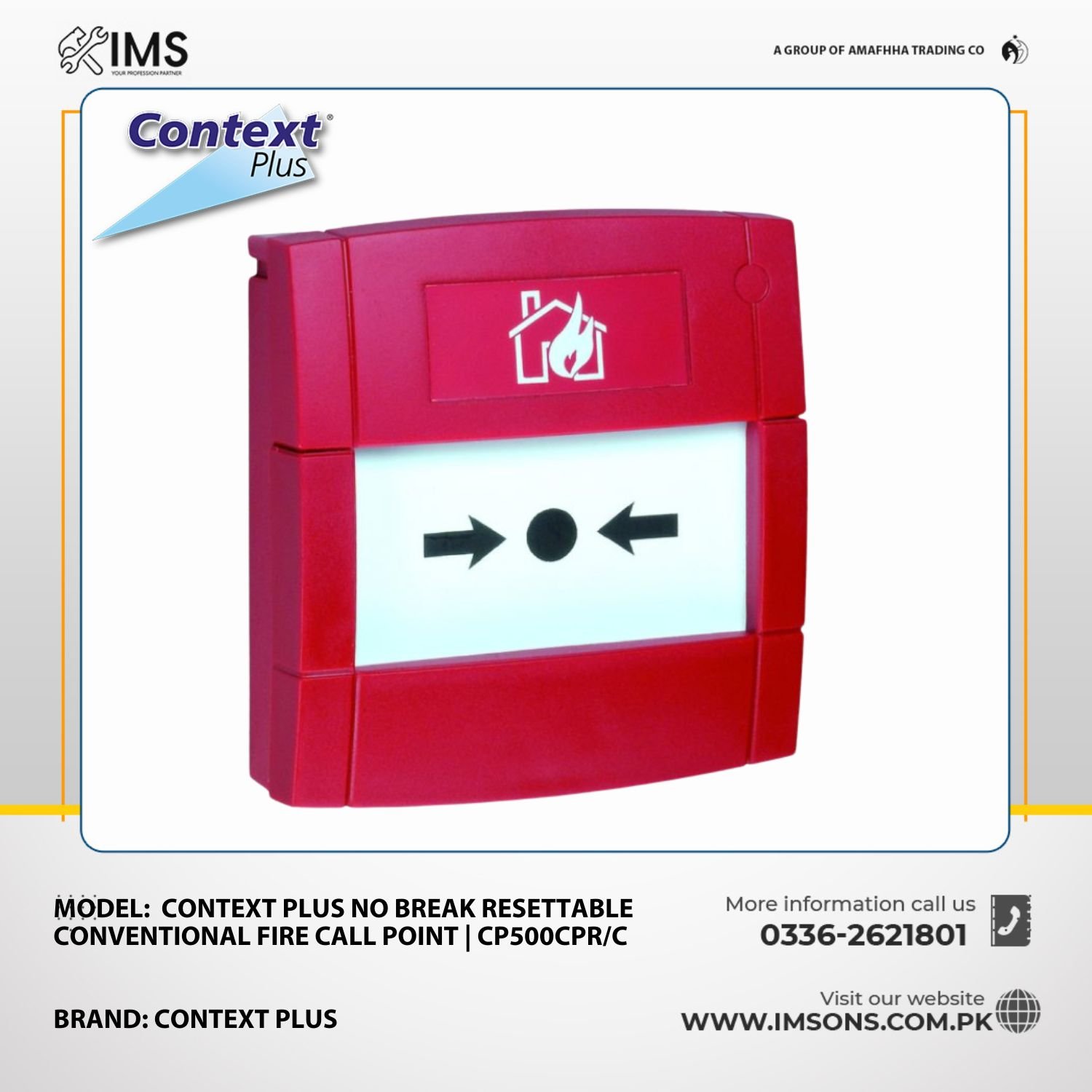

Technical Specifications

• Brand: Context Plus

• Model: CP500CPR-C

• Type: Resettable Conventional Fire Call Point

• Mounting: Surface or flush mountable

• Activation Element: No glass – plastic resettable element

• Cover: Transparent protective polycarbonate cover

• Connections:

  • Double terminal wire connectors (input/output) for easy looping

• Cable Entries: Pre-opened ¾″ Ø conduit entries (top, bottom, back)

• Housing: High-impact, heat-resistant engineering plastic

• Hardware: Brass and phosphor bronze metal parts for corrosion resistance

• Compliance: BS5839 Part 2, EN54 Part 11

• Reset Operation: Easy reset with a simple key after activation

• Typical Use: Conventional fire alarm circuits

• Color: Red (standard fire alarm color)

• Weight: Lightweight design for easy installation

Applications

This manual call point is ideal for:

• Commercial buildings and offices

• Educational institutions (schools, colleges)

• Shopping malls and retail spaces

• Hospitals and healthcare facilities

• Factories and warehouses

• Public infrastructure and high-occupancy venues

Product Details:

• Resettable Manual call Point fitted with Transparent Protective Polycarbonate Cover.
• Double terminal wire connectors for independent input and output connections which facilitate installations when used in looping.
• No glass elements to break, lose or incorrectly fit when installing.
• Complete functional test with every activation.
• Virtually maintenance free.
• Easy Reset operation with a simple key.
• Thread protection plugs are provided to protect the brass inserts on the base box (when conceal fixing is needed).
• 3/4″Ø pre-opened conduit entries from top, bottom and the back are provided for extra convenience.
• The casings are moulded from specially selected engineering plastic with high impact strength, high resistance to heat.
• All metal parts are made of brass and phosphor bronze to ensure life long resistance against corrosion.
• Colour matching polythene plugs for conduit entries are included.
• Suitable for surface or flush mounting.
• Comply BS5839 Part 2 and EN54 Part 11.

Directions for Use

1. Install the call point at a visible, accessible height near escape routes and exits.

2. Wire the unit into the conventional fire alarm loop using the provided terminals.

3. To activate: Press the central panel once in the event of a fire — this will send a signal to the fire alarm control panel.

4. To reset: After the alarm is acknowledged and cleared, use the provided reset key to return the call point to standby mode.

5. Ensure periodic inspection and testing to maintain compliance and readiness.

⚠ Safety Tip: Manual call points should be clearly labeled and unobstructed at all times.
