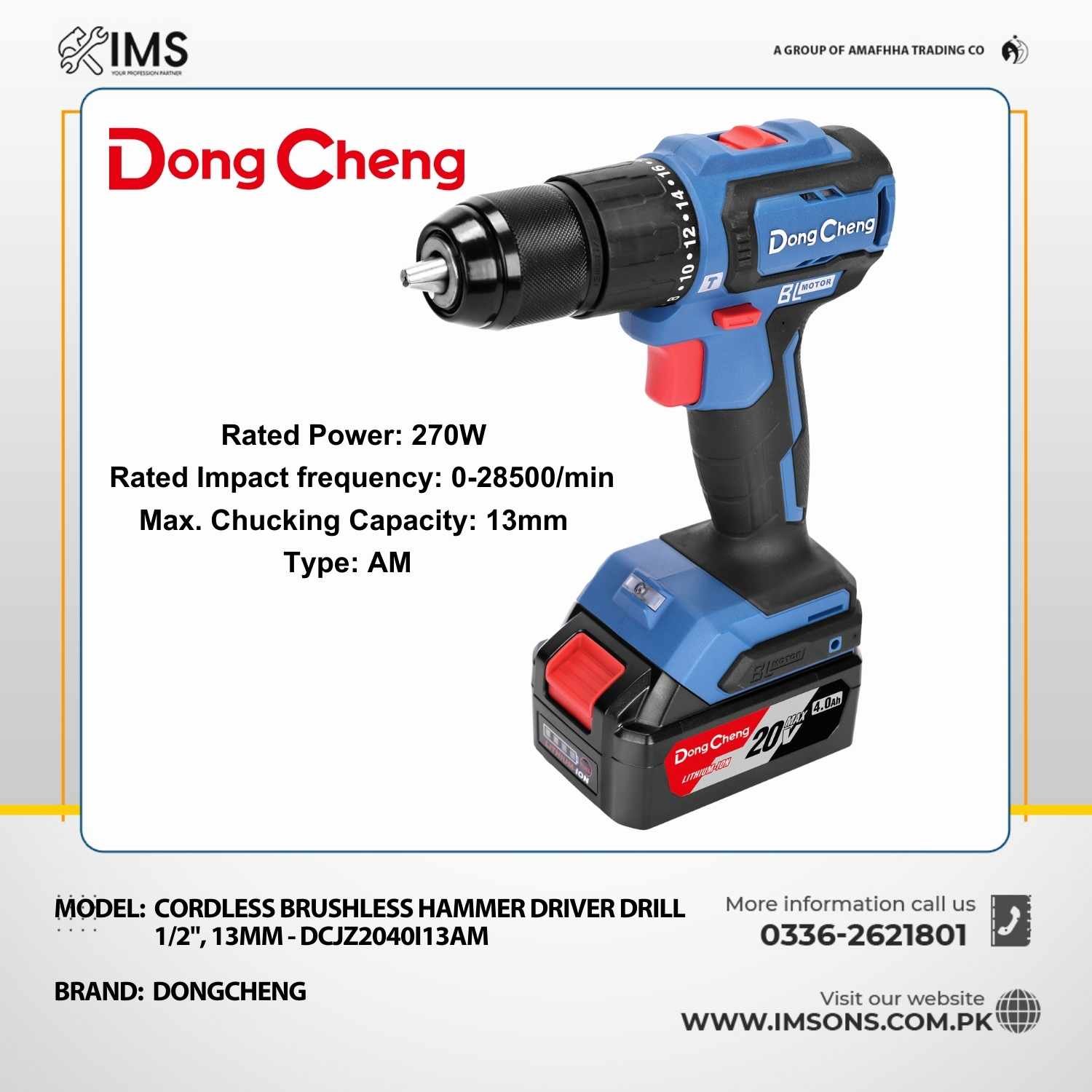

The DCJZ2040i13 20V MAX Brushless Impact Drill is a compact yet powerful drilling and screw-driving solution built for professionals, contractors, electricians, carpenters, and DIY users. Equipped with a brushless motor delivering 45Nm torque, dual-speed gearbox, and impact function, this drill ensures superior performance in wood, steel, and masonry applications.
Its lightweight and compact 161mm body design allows comfortable operation in tight spaces while maintaining maximum control and durability.
Technical Specifications
-
Model: DCJZ2040i13 (TYPE AM)
-
Battery: 20V MAX Lithium-Ion
-
Battery Capacity: 2.0Ah × 2
-
Max Power Output: 270W
-
Motor Type: Brushless
-
Max Chuck Capacity: 13mm
-
Chuck Type: 13mm Ratchet Metal Chuck
-
No-Load Speed:
-
1st Gear: 0–500 RPM
-
2nd Gear: 0–1900 RPM
-
-
Impact Frequency: 0–28,500 BPM
-
Max Drilling Capacity:
-
Steel: 10mm
-
Brick Wall: 10mm
-
Wood: 20mm
-
-
Torque Settings: 18 + 2
-
Maximum Torque: 45Nm
-
Net Weight: 1.0kg (Body) / 1.3kg (with battery)
Applications
Perfect for:
-
Wood drilling up to 20mm
-
Steel drilling up to 10mm
-
Brick and masonry drilling up to 10mm
-
Furniture installation
-
Cabinet fitting
-
Electrical and plumbing work
-
Home renovation projects
-
Screw driving and fastening tasks
Included Accessories (TYPE AM Package)
-
2 × 2.0Ah 20V MAX Batteries
-
2A Charger
-
Belt Clip
-
Driver Bit
-
Plastic Carrying Case
Key Features & Benefits
✔ Brushless Motor Technology
Provides higher efficiency, longer motor life, and improved battery runtime with maximum 45Nm torque output.
✔ 18+2 Torque Settings
Allows precise torque control for drilling and screw-driving applications.
✔ Dual-Speed Gearbox
-
Low Speed (0–500 RPM): High torque for screw driving
-
High Speed (0–1900 RPM): Fast drilling performance
✔ Impact Function (0–28,500 BPM)
Ideal for drilling into brick and masonry surfaces.
✔ 13mm Ratchet Metal Chuck
Heavy-duty and durable design ensures strong bit grip and reliability.
✔ Compact 161mm Body
Excellent maneuverability in confined spaces and overhead applications.
✔ Lightweight Design
Only 1.0kg (bare tool) reduces fatigue during extended work sessions.
Directions for Safe & Efficient Use
-
Fully charge batteries before first use.
-
Select appropriate speed and torque setting.
-
Use correct drill bits for material type.
-
Engage impact mode for masonry drilling.
-
Wear protective gloves and safety goggles.
-
Disconnect battery before changing accessories.
