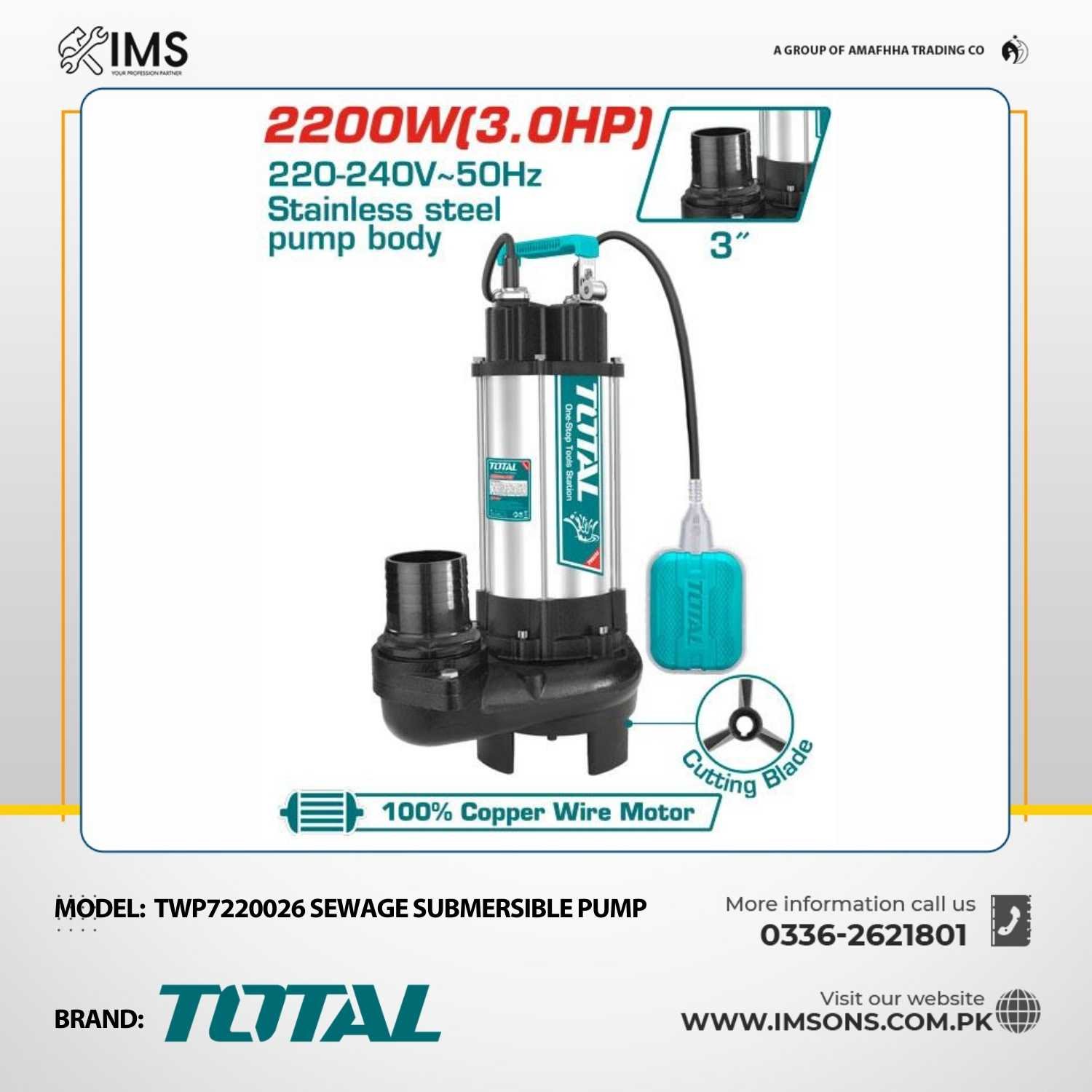

The TOTAL TWP7220026 Sewage Submersible Pump is a top-tier industrial-grade pump built for extreme-duty wastewater and sewage applications. Powered by a robust 2200W (3.0HP) copper motor, it delivers an exceptional 633L/min ultra-high flow rate, making it ideal for large-scale drainage and industrial operations.

Featuring a built-in cutting blade (grinder system), this pump efficiently handles solid waste and prevents clogging. Combined with a stainless steel pump body, cast iron motor housing, and protective control box, it ensures unmatched durability, safety, and performance.

Technical Specifications

• Model: TWP7220026

• Brand: TOTAL

• Voltage: 220–240V ~ 50Hz

• Rated Power: 2200W (3.0HP)

• Max Head: 13 meters

• Max Flow Rate: 633 L/min

• Pipe Diameter: 3 inch

• Cable Length: 9 meters

• Motor Type: Copper wire motor

• Pump Body: Stainless steel

• Motor Housing: Cast iron

• Special Feature: Built-in cutting blade (grinder)

• Control System: External control box for protection

• Application: Dirty water / sewage

• Packaging: Wooden box

Applications

Designed for large-scale and industrial operations:

• Industrial wastewater and sewage systems

• Municipal drainage and sewage plants

• Construction site dewatering

• Flood control and emergency drainage

• Agricultural and irrigation drainage

• Large sump pits and septic systems

Directions for Use

1. Place the pump securely in sewage or dirty water area.

2. Connect a 3-inch discharge pipe for maximum flow efficiency.

3. Connect the pump to the control box and power supply.

4. Plug into a 220–240V power source.

5. Switch on and monitor performance.

6. Ensure smooth flow and check for blockages.

7. Turn off and disconnect before maintenance.

Safety Instructions

• Do not operate the pump without proper water submersion.

• Always use the control box for safe operation.

• Keep hands away from intake due to cutter blade.

• Ensure proper electrical grounding.

• Inspect regularly for debris or wear.

Key Benefits

• 🚀 Ultra High Flow (633L/min): Maximum drainage efficiency for large jobs

• 💪 Powerful 3HP Motor: Built for extreme industrial applications

• 🔪 Built-in Cutter Blade: Prevents clogging and handles solid waste

• 📏 13m Head: Strong vertical pumping capability

• 🔩 3″ Outlet: Supports massive discharge volume

• 🛡️ Heavy-Duty Construction: Stainless steel + cast iron durability

• ⚡ Control Box Protection: Ensures safe and stable operation

• 🏗️ Industrial Grade Performance: Ideal for large-scale drainage systems
